01

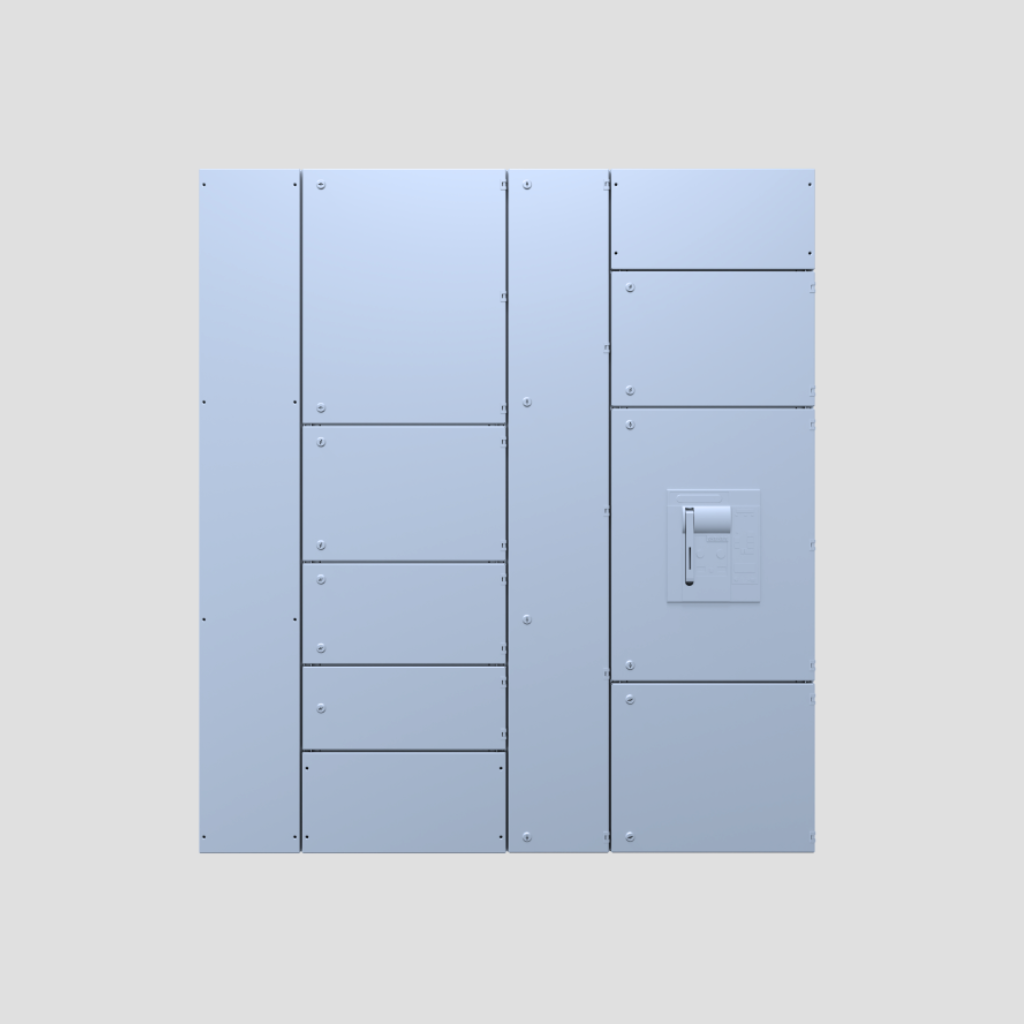

Multi-Section Panel Layout
- Separate compartments within a single enclosure
- Organized arrangement for multiple electrical sections
- Suitable for complex panel systems
Compartmentalised Industrial Enclosures
Multi-Section Enclosures for Safe and Independent Panel Operation
Get a quoteCompartmentalised Enclosures for Multi-Section Electrical Panels
Compartmentalised enclosures are used in electrical systems where multiple sections need to be separated within a single structure. When a single enclosure must house equipment operating at different voltage levels or when safety standards require physical separation between functional sections compartmentalised enclosures are the engineered answer. By dividing the internal space into discrete, sealed sections, these enclosures prevent cross-contamination of electrical faults, simplify maintenance, and help meet IEC Form factors required by many project specifications.
Key Design Features
04 core features02

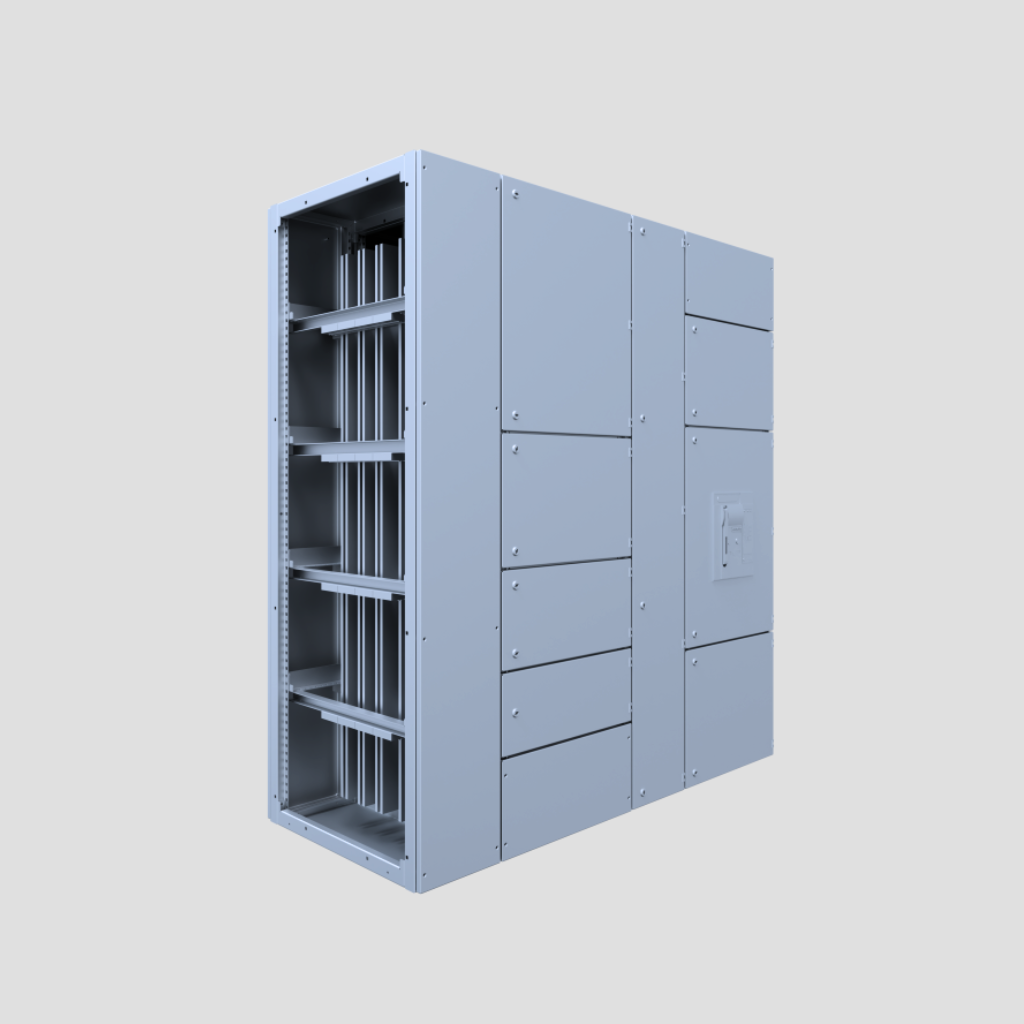

Segregated Component Structure
- Separation of circuits and electrical sections
- Reduced interaction between panel components
- Supports structured system layout
03

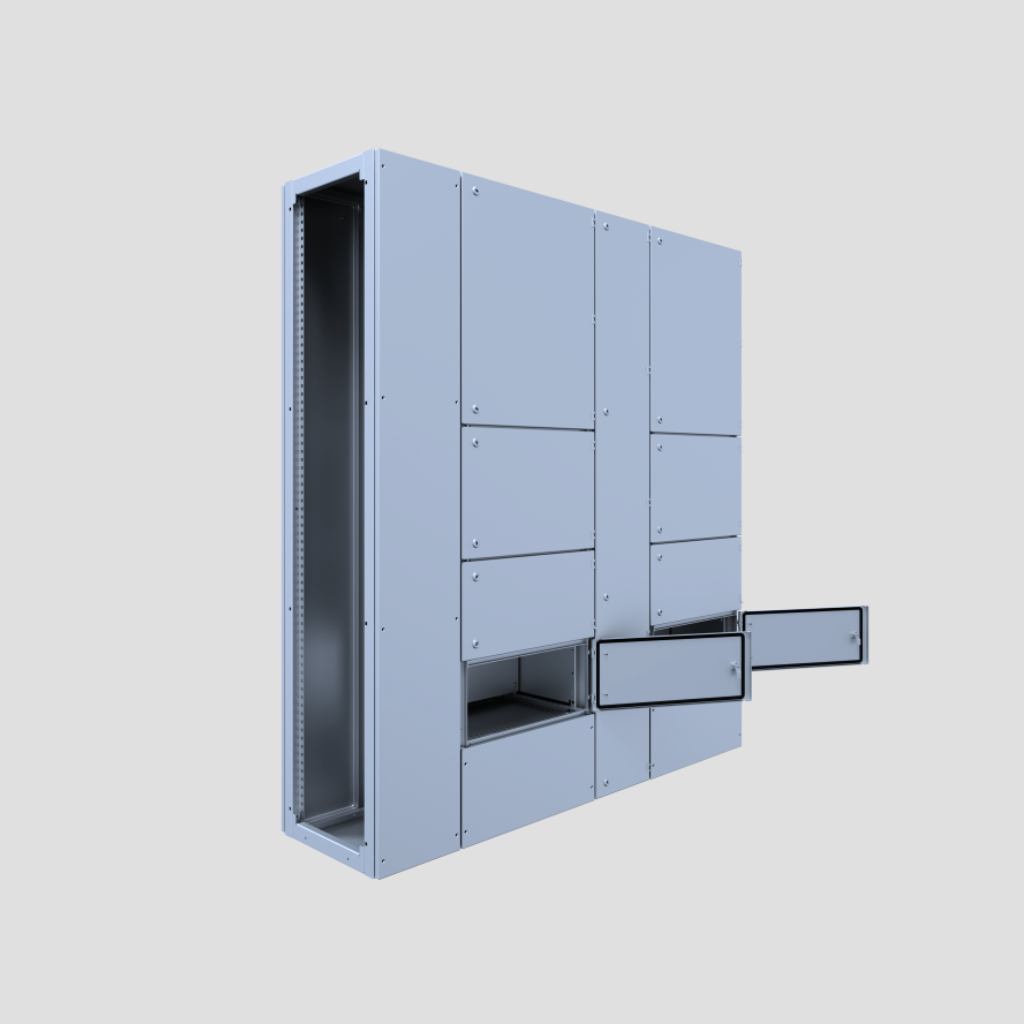

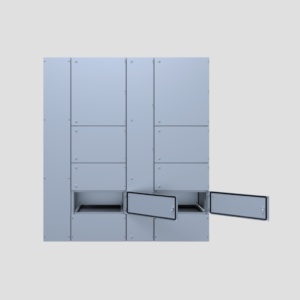

Accessible Maintenance Design
- Independent access to different compartments
- Easier inspection and servicing
- Reduced disturbance during maintenance
04
Industrial Build & Protection
- CRCA sheet construction
- Powder-coated industrial finish
- Protection levels based on installation requirements
Applications & Use-Cases
01
Electrical systems
02
Oil and Gas
03
Renewable Energy
04
Data Centers
05
Power Distribution
06
Infrastructure
01
Technical & Compliance
We manufacture compartmentalised enclosures as single-bay or multi-bay lineups. Internal barriers are precision-formed from CRCA sheet and finished to match the outer enclosure. We support both standard DIN rail and busbar-based configurations, and we can accommodate customer-supplied schematics or develop the layout from your equipment schedule.
Looking for an enclosure solution for the Power & Utilities sector?
Our team will help you select the right enclosure based on environment, standards, and application needs.
Frequently Asked Questions
Answers to help you select the right electrical enclosure for your application.
Why are compartmentalised enclosures used in electrical systems?
They are used to separate different sections within a panel, improving safety and allowing independent operation or maintenance of each section.
Can different circuits or panels be installed in one enclosure?
Yes, the enclosure is designed with internal partitions so multiple panels or circuits can be installed within separate compartments.
Does compartmentalisation help in maintenance?
Yes, individual sections can be accessed without shutting down or disturbing the entire system.
How is wiring managed between different compartments?
Wiring is planned with proper routing and separation to avoid interference between sections.
Do you manufacture compartmentalised enclosures for large projects or export requirements?
Yes, enclosures can be manufactured based on system design and supplied for both domestic and export projects.
